Glide - A New Buckling System

Summary

Glide is an easy-to-locate seat belt buckling system design for children with cerebral palsy that uses a funnel to guide the buckle into the slot. Please watch our pitch video below.

Role ― Prototyping Co-Lead

I was in charge of producing the initial low fidelity prototypes ― Looks-, Works-, & Feels- Like prototypes. For our final prototype, we used SolidWorks CAD software to make an accurate model in order to 3D print and laser cut our parts for assembly.

Beyond prototyping, I also conducted user research and observations. My team and I brainstormed design concepts and evaluated them with a decision matrix.

Team

Cassie
Coravos

Avery
Fisher

Justin
Hatfield

Martin
Hewitt

Jenny
Wang

Me!

Challenge

Globally, 17 million people have cerebral palsy, a loss or impairment of motor function caused by brain damage. From our research, site visits, and user interviews, we created personas and journey maps to identify pain points of people with cerebral palsy.

Journey Map of Passengers with Cerebral Palsy

Journey Map of Passengers with Cerebral Palsy

From our journey map, we noticed that people with cerebral palsy, especially children, had trouble buckling themselves in and usually required assistance. From this insight, we developed our problem statement:

How can we enable child passengers with cerebral palsy to buckle their seatbelt?

Solution

We designed a new buckling system called Glide, an easy-to-locate seat belt buckling system that uses a funnel to guide the buckle into the slot.

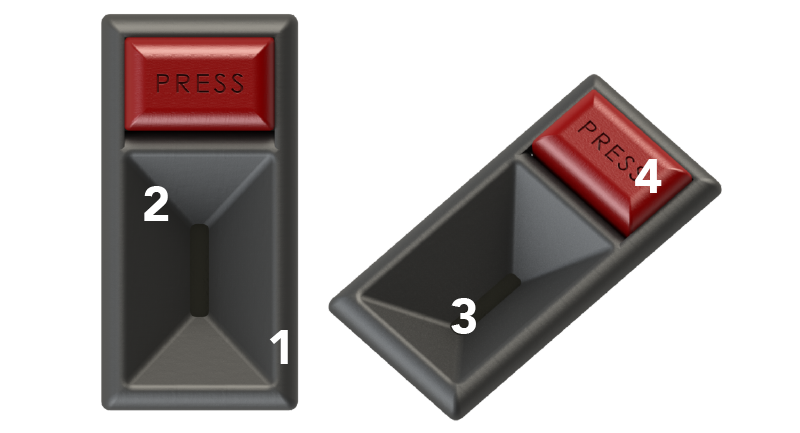

Final Rendering of Glide Buckling System

Final Rendering of Design

Design Features

  1. The slot of the buckle is inset into the seat to create a stable and stationary insertion point
  2. The slot has a concave surface that acts as a guide for the buckle
  3. The slot is covered by a push cover to protect from debris
  4. The familiar red "PRESS" button releases the passenger

Building the Functional Prototype

From our final design in SolidWorks, a teammate and I led the design and building of a functional prototype. We used precise manufacturing methods such as laser cutting and 3D printing in order to produce high fidelity parts. We modified a seatbelt buckle we bought in order to salvage the locking mechanism. The prototype was fully functional and reduced the required effort to buckle a passenger in.

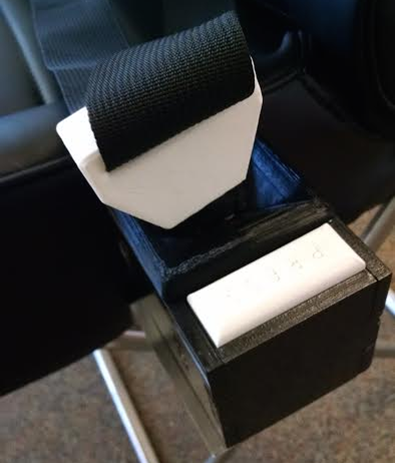

Final prototype of Glide Buckling System

Final prototype

Next Steps

We presented Glide at Fiat Chrysler Automobiles headquarters in December 2014. Fiat Chrysler employees were able use one hand and buckle themselves in without looking, which was amazing to see! Finally, a teammate and I presented at the SAE World Congress in Detroit in April 2015.

Design for America Northwestern Team presenting at Fiat Chrysler Headquarters

Team presenting at Fiat Chrysler Automobiles Headquarters
